Products

SM AirSeT Eco-friendly Cabinet

SM AirSeT is a modular, fully-air-insulated, SF₆-free metal-enclosed medium-voltage switchgear family from Schneider Electric, designed for secondary MV distribution, covering rated voltage up to 24 kV. It adopts patented Shunt Vacuum Interruption (SVI)™ technology: pure air performs insulation while vacuum interrupters complete arc-breaking, eliminating SF₆ and alternative fluorinated greenhouse

RMAirSeT Eco-friendly Cabinet

RM AirSeT is Schneider Electric’s SF6-free Secondary Gas Insulated Switchgear, designed as a Ring Main Unit (RMU) and Modular Switchgear solution for medium voltage applications up to 24 kV. As part of the SeT Series portfolio (alongside SM AirSeT and GM AirSeT), RM AirSeT represents a breakthrough in eco-friendly switchgear technology, using pure air insulation instead of SF6 gas — delivering wor

Pix Air Insulated Switchgear

The PIX Standard series by Schneider Electric comprises air-insulated medium-voltage switchgear units engineered exclusively for the switching and distribution of electrical power. Designed for indoor installation and operation under normal conditions, the switchgear complies with IEC 62271-1: 2017 and is intended for use by manufacturer’s staff or personnel certified for the PIX series.

DNF7 Indoor AC Metal-Enclosed Switchgear

The DNF7 series is a medium-voltage air-insulated switchgear manufactured by Schneider Electric, implementing the company's unified technology, production, and quality standards. It is widely applied in various power generation and distribution systems and can ensure safe and reliable operation under all kinds of service conditions.

Schneider SM6 Medium Voltage Switchgear

SM6 is a modular metal-enclosed air-insulated medium-voltage switchgear family manufactured by Schneider Electric, supporting rated voltages up to 36 kV. It adopts SF₆ gas-sealed breaking units or vacuum breaking technology, with a designed service life of 30 years. More than 1 700 000 SM6 cubicles have been deployed worldwide.

HVX Circuit Breaker Sample

Introduction and Brand Heritage

Schneider MTZ frame circuit breaker

The MasterPacT MTZ is a next-generation air circuit breaker and switch-disconnector within Schneider Electric’s PacT Series, engineered for the Internet of Things era. Integrated with the EcoStruxure Power platform and featuring the MicroLogic X control unit, it delivers enhanced performance, connectivity, and scalability for modern power distribution.

BlokSeT Active Low Voltage Switchboard

BlokSeT has won full recognition from international anddomestic users for its excellent performance experience,high reliability, comprehensive solutions and high-qualityintelligent power distribution solutions. Its business covers allfields of construction, industry, energy and infrastructure, andit represents the international advanced level of low voltageswitchgear and control device.

Schneider OKKEN Low Voltage Switchgear

The OKKEN low voltage switchboard (Low Voltage Switchboard) is manufactured by Schneider Electric. The related installation guide document number is SBSED001025EN (2023 edition).

Schneider Modular-Secondary AlS Air & Vacuum Air Insulated Switchgear

The PIX Standard series by Schneider Electric comprises air-insulated medium-voltage switchgear units engineered exclusively for the switching and distribution of electrical power. Designed for indoor installation and operation under normal conditions, the switchgear complies with IEC 62271-1: 2017 and is intended for use by manufacturer’s staff or personnel certified for the PIX series.

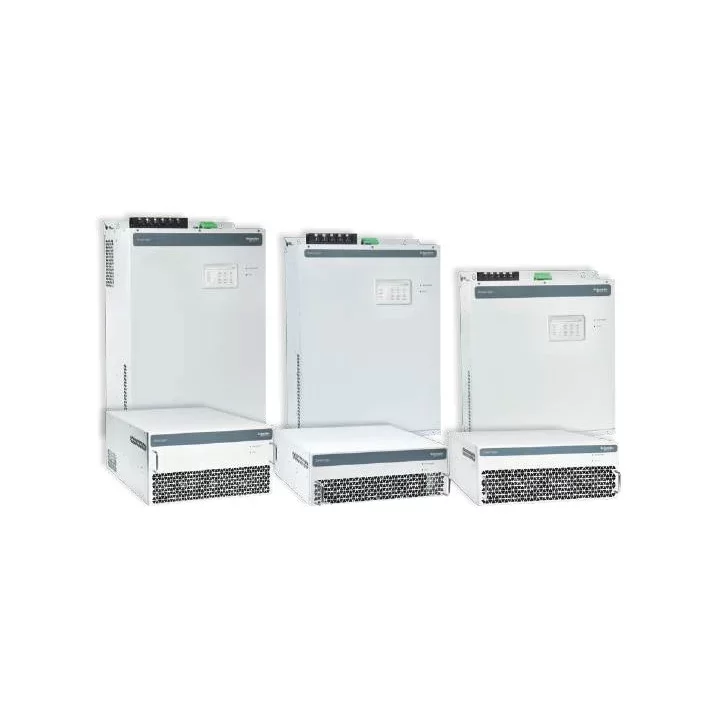

Active filter EasyLogic™ PCSU

Power quality issues are a major cause of unplanned downtime, equipment failures, and damage. From industrial plants and medical facilities to data centers and commercial buildings, the reliability and consistency of power supply are crucial. Businesses are at stake. When power quality is suboptimal due to disturbances such as outages, voltage drops, or harmonic pollution, your business will be impacted. The frequency of these problems and their financial impact are areas of increasing concern for end users.

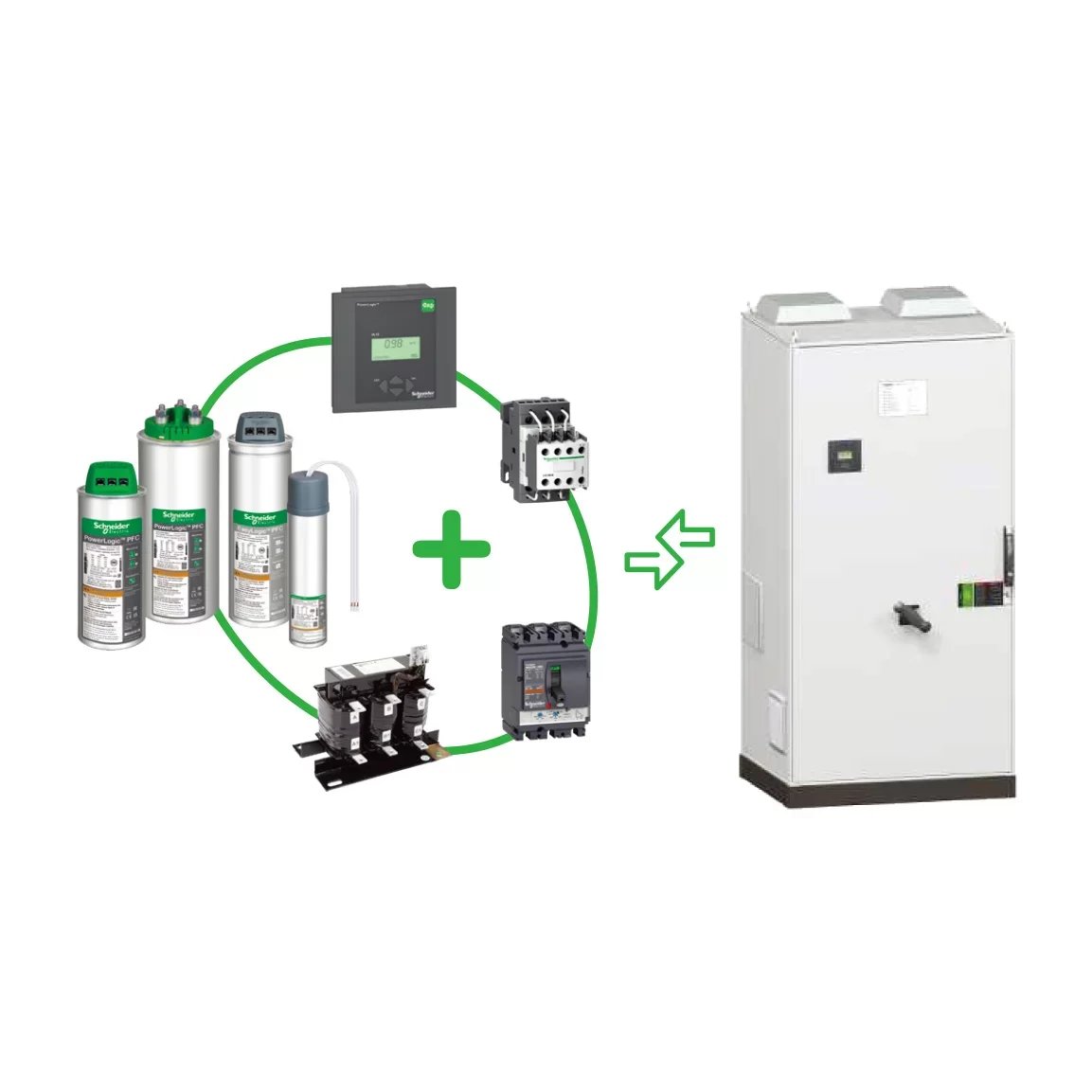

Low Voltage Power FactorCorrection Components

Reactive energy management In electrical networks, reactive energy results in increased line currents for a given active energy transmitted to loads.

CVS Molded Case Circuit Breaker

EasyPact CVS is a range of molded-case circuit breakers and switch-disconnectors designed by Schneider Electric, covering ratings from 16A to 630A. Part of the Easy Series product family, it is engineered for simplicity, safety, and customer value in low-voltage power distribution applications.

Schneider NSX molded case circuit breaker

ComPacT NSX & NSXm are the next-generation Molded-Case Circuit Breakers (MCCBs) and Switch-Disconnectors launched by Schneider Electric. This product series covers a current range from 16A to 630A, with voltage ratings up to 690V AC, offering multiple performance grades to meet diverse application requirements.

EcoStruxure™ Energy Operation (EEO) Power Comprehensive Operation System

EcoStruxure™ Energy Operation (abbreviated as EEO) is a new‑generation intelligent integrated operation platform for critical infrastructure. It features openness, security & reliability, intelligence, modular design, easy deployment, high availability, expandability, local information security compliance and visualization.

IMDC Row-SP Series UPS

Schneider Electric's SP series 20KVA/30KVA/50KVA rack-mount UPS effectively protects electronic equipment from damage caused by factors such as mains power outages, low voltage, voltage drops, surges, minor mains power fluctuations, and power disturbances. These high-performance sinusoidal wave online UPS systems are specifically designed for network computer rooms and small intelligent devices/precision instruments in systems such as finance, telecommunications, insurance, transportation, industry, mining, and enterprises, and are particularly suitable for harsh power grid environments.

IMDC POD Dual-row Intelligent Modular Data Center

Modular design allows for flexible combination to define your own data center. Provide users with a one-stop, end-to-end high-efficiency and highly flexible solution. Compact design, UPS and power distribution unit integrated into one cabinet Modular power distribution units allow for the combination of various power distribution architectures as needed. 30/50kVA UPS provides stable and reliable power supply for critical loads. Complete Schneider Electric switchgear/surge protector/power distribution system

IMDC Row Single-row Intelligent Modular Data Center

One-stop delivery of single-row data centers Provide users with a one-stop, end-to-end, energy-efficient, and highly flexible edge computing solution.

IMDC One & Mini 3-20kw 1-4 racks IMDC One Intelligent Modular Data Center

Lightweight applications Natural air cooling/rack-mounted precision air conditioner Small edge computing nodes and network power distribution rooms Modular design allows for flexible combination to define your own data center. Provide users with a one-stop, end-to-end high-efficiency and highly flexible solution.

Protection Relay

overview PowerLogic P5 is a family of digital protection and control relays for medium voltage distribution networks dedicated to: Buildings and Industry: Data centers Retails Hotels Health care Education and research Transportation Industrial buildings Utilities: energy distribution Large sites: Oil and Gas Mining Mineral and Metals Water PowerLogic P5 protection and control relays are based […]

Universal Relays P3U20 and P3U30

Overview PowerLogic P3 is a family of digital protection relays for distribution networks dedicated to: Buildings and Industry: Retail Hotels Healthcare Education and research Transportation Industrial buildings Data Center Utilities – Energy distribution Large sites: Oil and Gas Mining Mineral and Metals Water PowerLogic P3 protection relay is based on proven technology concepts and developed […]

PM5500 / PM5600 / PM5700 power meters

The PowerLogic™ PM5500 / PM5600 / PM5700 power meters offer value for the demanding needs of your energy monitoring and cost management applications. The PM5500 / PM5600 / PM5700 complies to Class 0.2S accuracy standards and feature high quality, reliability and affordability in a compact and easy to install format.

PM5350P power parameter meter

The PM5350P power parameter meter is a brand-new product in Schneider Electric’s PowerLogic meter family. Adopting a North American design style, it features a compact form factor and powerful functions, suitable for power distribution monitoring systems across various industries. The PM5350P meter enables real-time monitoring of all electrical parameters of the load. It supports Chinese and English display and is equipped with a large LCD screen for clear visibility under strong light and wide viewing angles.

PM4700 Series Power Parameter Meters

EasyLogic™ PM4700 series power parameter meters are a new generation of high-precision color-screen multi-function meters launched by Schneider Electric meter family.

PM4600 series power meters

Meter Function Overview EasyLogic™ PM4600 series power meters deliver the basic measurement capabilities required for monitoring single-phase or three-phase electrical installations (e.g., current, voltage and energy). The PM4600 series power meters support multiple functions, some of which are listed below: LCD display screen: Equipped with an LCD dot-matrix display. Parameters can be accessed and operated […]

PM4500 series power meters

EasyLogic™ PM4500 series power meters provide the basic measurement capabilities required for monitoring single-phase or three-phase electrical installations (e.g., current, voltage and energy).

PM4501

PM4213 meter

The PM4213 meter is designed for intelligent power monitoring and energy metering requirements. It measures common electrical parameters in three-phase power grids, including three-phase voltage, current, power, power factor, frequency, energy, etc.

PM4201 meter

The PM4201 meter is designed for intelligent power monitoring and energy metering requirements. It measures common electrical parameters in three-phase power grids, including three-phase voltage, current, power, power factor, frequency, energy, etc.

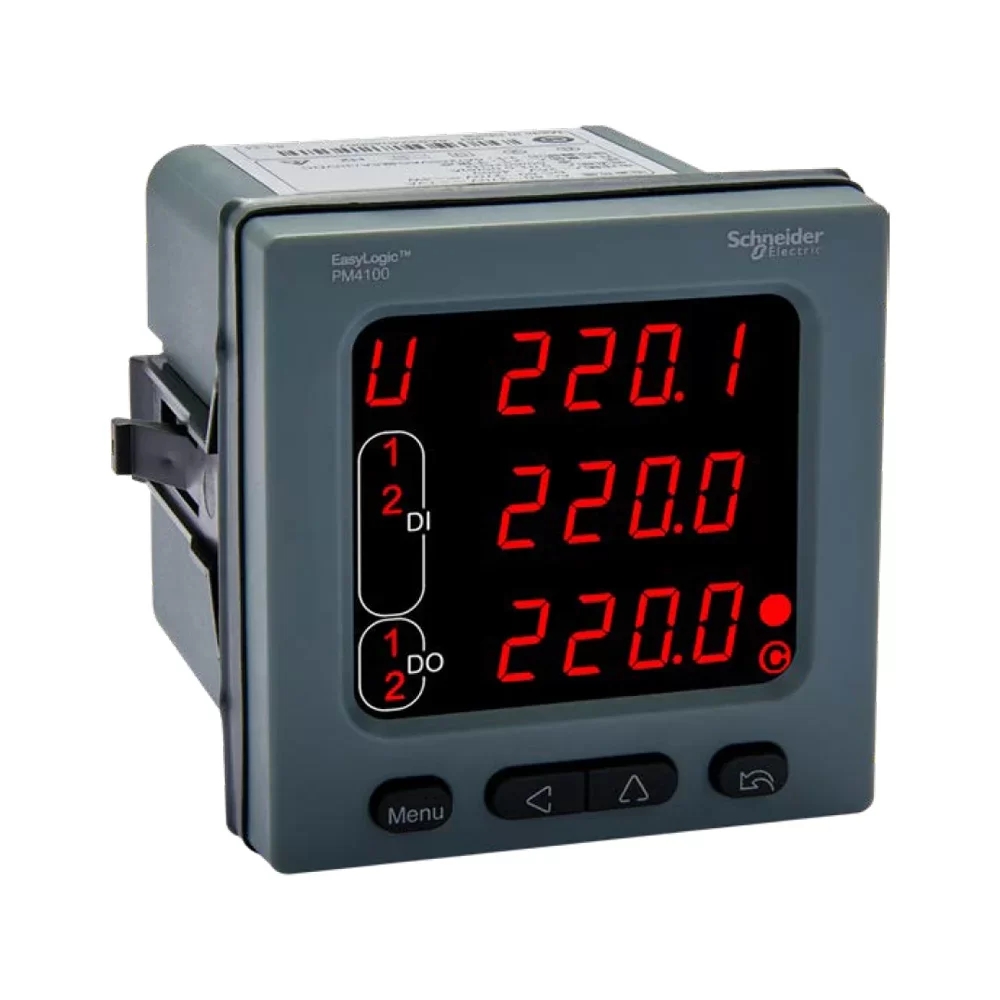

PM4100/PM4101 meter

The PM4100/PM4101 meter is designed for intelligent power monitoring and energy metering requirements. It measures common electrical parameters in three-phase power grids, including three-phase voltage, current, power, power factor, frequency, energy, etc.

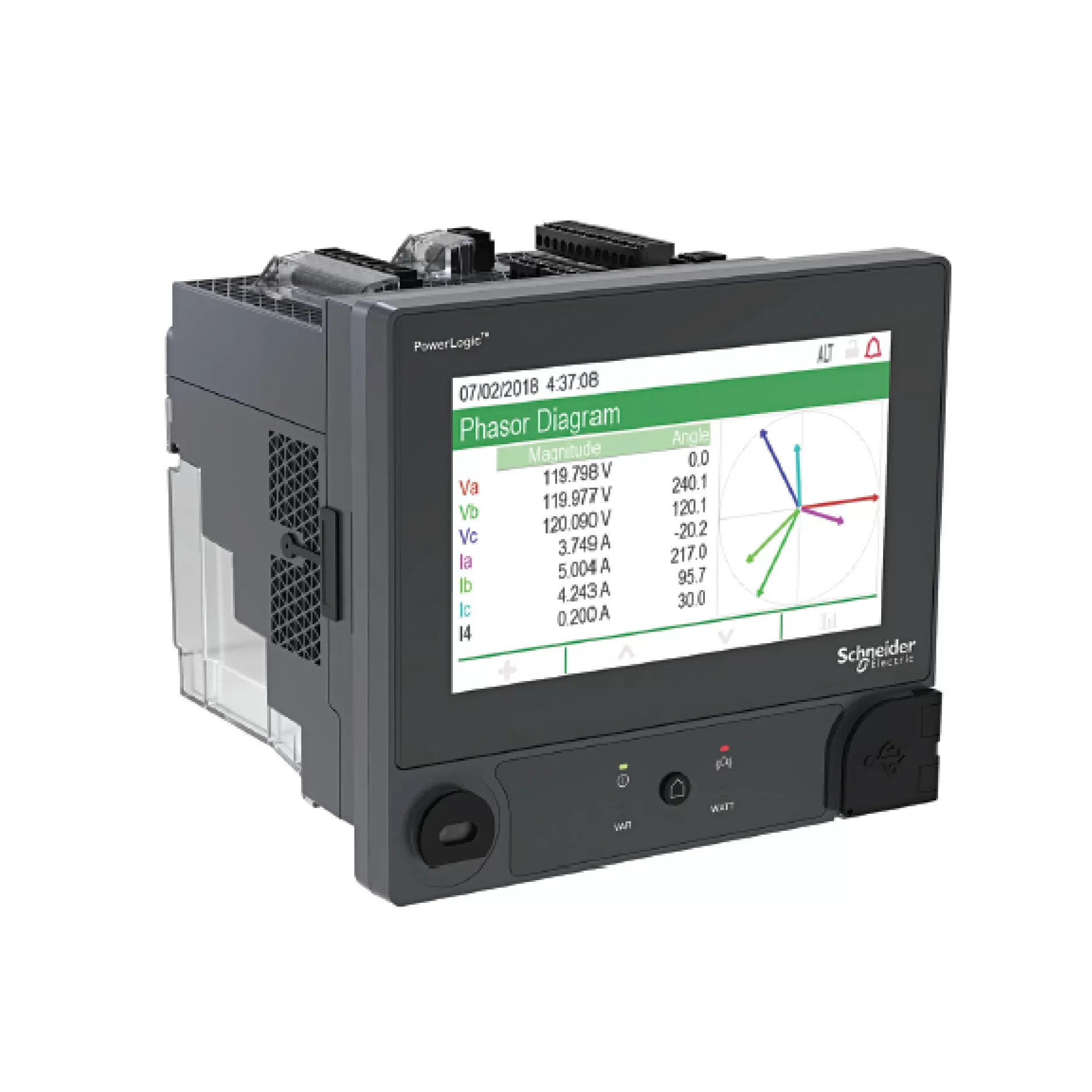

ION9000 series advanced energy and power quality meter

ION9000 series overview The ION9000 series advanced energy and power quality meter helps meet the needs of your energy management, power management, and cost management applications within your EcoStruxure™ Power architecture.

ZX2 Gas-insulated medium-voltage switchgear

The ZX2 is ABB's gas-insulated medium voltage switchgear, part of the ZX product family that covers the entire spectrum of primary distribution applications. Rated up to 40.5 kV / 3150 A / 40 kA, the ZX2 offers three insulating gas options to suit different priorities:

ZX0.2 Gas-Insulated Medium-Voltage Switchgear

3. Proven Reliability: Backed by over 75,000 panels installed in more than 100 countries, offering a highly reliable, smart, and compact solution tailored to local requirements.

UniGear ZS3.2 Medium-Voltage Air-Insulated Switchgear

UniGear ZS3.2 is threephase, metalenclosed, airinsulated, LSC2B switchgear and all the panels are factoryassembled, typetested and suitable for indoor applications up to 40.5 kV. The panels are designed as withdrawable modules and are fitted with a single busbar system. The withdrawable parts are equipped with circuitbreakers.

UniGear ZS1 Medium-Voltage Switchgear

ABB UniGear ZS1 is a three-phase, metal-enclosed, air-insulated medium-voltage switchgear system designed for indoor power distribution applications up to 12 kV.

safeRing Air Gas Cabinet

ABB SafeRing Air and SafePlus Air are SF₆-free, gas-insulated medium-voltage switchgear systems designed for secondary distribution networks up to 12 kV and 630 A. They use Dry Air as the insulating medium, providing a low-carbon alternative to conventional SF₆-insulated switchgear.

Outdoor Vacuum Circuit Breaker Type VBF

The Type VBF Outdoor Vacuum Circuit Breaker is an outdoor medium-voltage vacuum circuit breaker designed for high operational reliability and minimum maintenance. It is equipped with an ESH spring-operated mechanism and is suitable for outdoor installation in medium-voltage power distribution systems.

ABB VD4 Vacuum Circuit Breaker

The VD4 vacuum circuit breaker is a high-performance indoor medium-voltage switching device designed for air-insulated switchgear systems. It uses ABB vacuum interrupters, solid-sealed embedded epoxy poles, and a reliable CL stored-energy spring operating mechanism.

SACE Tmax Molded Case Circuit Breakers

ABB SACE Tmax is a range of molded case circuit breakers and switch-disconnectors designed for special low-voltage applications requiring high breaking capacity, compact dimensions, flexible configurations, and advanced protection.

SACE Tmax XT Low Voltage Molded Case Circuit Breakers

ABB SACE Tmax XT is a range of low voltage molded case circuit breakers designed for high performance, advanced protection, connectivity, and ease of use in electrical distribution systems up to 1600 A.

SACE FORMULA DSA Molded-Case Circuit Breakers

SACE FORMULA DSA is a range of low voltage molded-case circuit breakers developed by ABB SACE for power distribution and motor protection applications. The range is designed to combine simplicity, reliability, quality, and versatility in a single product family.

EMAX3 Air Circuit Breaker

The ABB SACE Emax 3 is the ultimate evolution in circuit breaker technology, building upon ABB’s trusted Emax family with advanced adaptability, security, and reliability features. Engineered to solve what’s next in power distribution, it meets the demands of modern systems with innovative technology, designed to evolve with your infrastructure and safeguard both assets and people.

EMAX2 Air Circuit Breaker

This document describes the Datalogger function integrated into ABB Emax 2 and Tmax XT circuit breakers. The Datalogger function stores, with a high sampling frequency, the instantaneous values of all the measurements in two memory buffer registers.

ABB MNS Low Voltage Switchgear

ABB MNS® Low Voltage Switchgear is a modular low-voltage switchgear system designed for high safety, reliability, availability, and long-term operational performance. Since its introduction in 1973, ABB has delivered approximately 1.7 million MNS cubicles worldwide, making it one of the most widely used low-voltage switchgear platforms.

ABB Emax 3 Air Circuit Breaker

The ABB SACE Emax 3 is the ultimate evolution in circuit breaker technology, building upon ABB’s trusted Emax family with advanced adaptability, security, and reliability features. Engineered to solve what’s next in power distribution, it meets the demands of modern systems with innovative technology, designed to evolve with your infrastructure and safeguard both assets and people.

ABB Emax 2 Air Circuit Breaker

This document describes the Datalogger function integrated into ABB Emax 2 and Tmax XT circuit breakers. The Datalogger function stores, with a high sampling frequency, the instantaneous values of all the measurements in two memory buffer registers.

40.5 kV ET2 Medium-Voltage Switchgear

The product is a 40.5kV indoor metal-clad withdrawable air-insulated switchgear, suitable for a three-phase AC 50Hz single-bus sectional system, including 630~4000A ratings. It is equipped with E-VAC withdrawable vacuum circuit breakers, which are suitable for receiving and distributing electric energy in power grids, substations, industrial or mining enterprises and commercial buildings to realiz

Eaton 12kV ET1 Medium-Voltage Switchgear

12kV ET1 is the indoor metal-clad air insulated medium voltage switchgear. Benefit from

Eaton Power Xpert GSN2-24L

The Eaton Power Xpert GSN2-24L is a gas-insulated medium voltage switchgear designed for critical power applications where reliability and space efficiency are paramount. Its compact design delivers exceptional value in safety, reliability, and space savings without compromising functionality.

Eaton RAVC Series SF6 Gas-Insulated Switchgear

Low power loss, low maintenance spending, reliable performance, flexible configuration are required on the medium voltage switchgear. Due to its features such as long service life, compact size and recycling, Eaton RVAC ring main units have proved successful in terms of economy and ecology. It appears more important for Underground cabled power distribution network in improving its devices and oth

Eaton Xiria Plus 630 Solid-Insulated Switchgear

XIRIA Plus is Eaton's new solid-insulated ring main unit (RMU) designed for smart-grid applications. The system is characterised by its high level of operational safety and is suitable for applications up to 12 kV. It is positioned as a compact, environmentally friendly solution for the medium-voltage secondary distribution network.

Eaton Xiria Air Eco-friendly Gas-insulated Switchgear

XIRIA is Eaton's next-generation environmentally-friendly green gas insulated Ring Main Unit (RMU). It is designed for 12kV power distribution systems and is characterized by its high level of operational safety, compact footprint, and modular design flexibility.

Power Xpert XGIS Air switchgear

Power Xpert XGIS Air switchgear combines safety, reliability, and space savings without compromising functionality. It features a cast aluminum tank-type gas chamber with superior pressure capacity, housing the breaker, disconnector, and busbar in eco-friendly gas. The cast-type busbar ensures excellent conductivity and strength. For safety, an arc protection system discharges gas through a pressu

Eaton Xiria Medium Voltage RMU

XIRIA Plus is Eaton’s new solid-insulated ring main unit (RMU) designed for smart-grid applications. The system is characterised by its high level of operational safety and is suitable for applications up to 12 kV. It is positioned as a compact, environmentally friendly solution for the medium-voltage secondary distribution network.

Eaton RVAC Ring Main Unit

Low power loss, low maintenance spending, reliable performance, flexible configuration are required on the medium voltage switchgear. Due to its features such as long service life, compact size and recycling, Eaton RVAC ring main units have proved successful in terms of economy and ecology. It appears more important for Underground cabled power distribution network in improving its devices and oth

Dry-type transformer SCL-1000kVA-22-0.4kV

•Product Model: SCLB-1000/22 Dry-Type Transformer

Dry-type transformer

Eaton's cast resin dry-type transformers are a comprehensive range of high-reliability, maintenance-free power distribution solutions covering voltage up to 35kV and rating up to 31.5MVA with BIL up to 200kV. The product line includes 10kV/20kV/35kV distribution transformers (100-3500kVA) and 35kV power transformers (4000-25000kVA), available in both copper and aluminum winding configurations. Bui

Eaton Power Xpert DX Low-Voltage Switchgear

Eaton's Power Xpert DX is a low-voltage power distribution and motor control center designed for diverse industrial and commercial applications. Rated up to 6300A with main busbar short-circuit withstand of 100kA/1s, the system offers Form 3b/4b full internal separation, IP42/IP54 protection, and supports drawer, plug-in, and fixed configurations. Featuring patented silver-plated scissor contacts,

Eaton Power Xpert DX Low Voltage Power Distribution and Motor Control Center

Eaton’s Power Xpert DX is a low-voltage power distribution and motor control center designed for diverse industrial and commercial applications. Rated up to 6300A with main busbar short-circuit withstand of 100kA/1s, the system offers Form 3b/4b full internal separation, IP42/IP54 protection, and supports drawer, plug-in, and fixed configurations. Featuring patented silver-plated scissor contacts,

IZM6 Frame Circuit Breaker

Eaton's IZM6 series air circuit breakers are a high-performance medium-voltage protection platform covering three frame sizes—IZM61 (up to 1600A), IZM65 (up to 2500A), and IZM67 (up to 4000A)—with switching capacities from 55kA to 85kA. Available in withdrawable, fixed, and manually operated configurations, the IZM6 is equipped with next-generation PT electronic trip units (PT10/PT20/PT25) offerin

Eaton Power Defense Molded Case Circuit Breaker

Eaton's Power Defense™ PDC5 series molded case circuit breakers (630–1600A) are a globally certified platform designed to safely distribute, switch, and control electrical energy in industrial, building, and machinery applications. Featuring Power Xpert Release (PXR) electronic trip units with LCD display, built-in communications, and advanced metering, the PDC5 delivers intelligent, reliable prot

Eaton low-voltage contactor

Eaton's ICON series motor control portfolio includes DILA contactor relays (up to 16A), DILM contactors (7A–170A+, up to 90kW), ZB overload relays, and PKZMC motor protection circuit breakers (up to 100kA). Featuring interchangeable AC/DC coils, modular accessories, and compliance with IEC/EN 60947, UL, and GB 14048 standards, the series delivers compact, reliable motor control solutions for diver

New Generation Air Circuit Breaker IZM9 Series

Eaton’s IZM9 series comprises a comprehensive range of technically mature and reliable air circuit breakers with rated currents up to 6300 A. Available in three frame sizes, they offer an ideal, cost-effective solution for any project.

Eaton FAZ Series Miniature Circuit Breakers

Widely used in high-end buildings and MOEM industries for overload/short-circuit protection, control, and power isolation, this product complies with IEC/EN60898-1, IEC/EN 60947-2, GB14048.2, and UL1077 standards (certified with CCC, CB, CE, UL, CSA). It offers 1P-4P poles, B/C/D/K/S/Z tripping characteristics, and up to 15kA breaking capacity (IEC/EN 60947-2). Designed for harsh environments (e.g

BZM Molded Case Circuit Breaker

The BZM series features a modular design, offering a range of protection options such as thermal-magnetic, magnetic-only, and earth-leakage protection.

Eaton Molded Case Circuit Breaker

Eaton molded case circuit breaker for distribution and motor protection.

Eaton FAZ miniature circuit breaker

Widely used in high-end buildings and MOEM industries for overload/short-circuit protection, control, and power isolation, this product complies with IEC/EN60898-1, IEC/EN 60947-2, GB14048.2, and UL1077 standards (certified with CCC, CB, CE, UL, CSA). It offers 1P-4P poles, B/C/D/K/S/Z tripping characteristics, and up to 15kA breaking capacity (IEC/EN 60947-2). Designed for harsh environments (e.g

Eaton M22-FAK low-voltage control components

Eaton's industrial control component portfolio features the RMQ-Titan series of 22mm pushbuttons and indicator lights, offering a comprehensive range of spring-return and self-locking pushbuttons, mushroom-head emergency stop buttons, selector switches, key-operated switches, and LED indicators with up to IP67/IP69K protection for harsh environments. Complementing this range, the FAK series provid

XGN66-12 Box-type fixed closed switchgear

XGN66-12 box type Pxed closed switchgear (hereinafter referred to as switchgear) is suitable for 3.6~12kV three-phase AC 50Hz system as the device to receive and distribute electric energy, it's used for frequent operation places and for reconstruction of switchgear equipped with oil switch.The bus system consists of single bus system and single bus section system.

XGN2-12 box type fixed metal-enclosed switchgear

XGN2-12 box type fixed metal-enclosed switchgear (referred to as switchgear) is used for receiving and distributing electric energy in 3.6, 7.2 and 12KV three-phase AC 50Hz systems. It is suitable for occasions with frequent operations. Its bus system is a single bus (and can derive single bus with bypass and double bus structures). This switchgear meets the requirements of the national standard GB3906-91 A.C. Metal-Enclosed Switchgear for rated voltages of 3~35kV and the international standard IEC298, and has the "Pve prevention" locking function proposed by two ministries.

XGN □ -24 Fully metal enclosed ring main unit

Note: The rated current of the switch-fuse combination is used for the complete combined apparatus of the load switch and the selected fuse. The data outside the brackets refer to the neutral point grounding system through low resistance, and the data inside the brackets refer to the neutral point grounding or ungrounded system through arc suppression coil.

RM6-40.5 Fully enclosed full insulated gas filled ring main unit

RM6-40.5 fully enclosed full insulated gas filled ring main unit is a new generation of switchgear produced by our company as a complete set of indoor 12~40.5kV three-phase AC 50Hz equipment for receiving and distributing electric energy. It is mainly used for power transformation and transmission of medium voltage power systems such as various power plants, substations, industrial and mining enterprises, subways, civil and commercial buildings for control, protection and monitoring. It is characterized by reliable performance, strong adaptability and small size.

HXGN15-12 Box-type Fixed Metal-enclosed Switchgear

HXGN15-12 box type Pxed metal enclosed ring main unit (ring main unit for short) is suitable for power system of AC 50Hz, 12kV. It's widely used in industrial and civil cable ring network and power supply terminal.

HXGN □ -12 Box-type Fixed Metal-closed Ring Main Unit

HXGN □ -12 box type Fxed metal enclosed switchgear (referred to as ring main unit) is a complete set of AC high voltage equipment with rated voltage of 12kV and rated frequency of 50Hz. It is mainly used for three-phase AC ring network, terminal distribution network and industrial electrical equipment, and it plays the role of receiving, distributing electric energy and protecting. It also can be installed in box substation.

GTXGN □ -12 solid insulated ring main unit

GTXGN □-12 is an environmentally friendly solid insulated ring main unit with V, C, and F units that can be used alone or extended. It features an intelligent control room, spring mechanism, and APG epoxy-encased primary parts. The R-type arc-extinguishing chamber improves breaking capacity and electrical life, while the integrated spring mechanism ensures reliable interlocking with fewer parts.

POWGRID-S series low-voltage distribution and control box

POWGRID-S series low-voltage distribution and control box is a low-voltage complete product newly developed by CHINT Electric for the domestic distribution market. Standardized product design, uniPed brand image and all-round customer experience improvement all originate from the original intention of creating value for customers.

JP Outdoor Integrated Distribution Box

JP series outdoor integrated distribution box is a multi-function integrated metering, outlet, reactive power compensation, outdoor integrated power distribution device; integrated short circuit, overload, overvoltage, leakage protection functions etc.; with small size, beautiful appearance, economical Practical, easy installation onto the poles of outdoor pole transformers, it is a new generation of ideal power distribution products for the transformation of urban and rural power grids.

GZDW DC power supply cabinet

GZDW DC power supply cabinet is used in large, medium and small power plants and substations, as the DC power supply required for high-voltage switch opening and closing, relay protection, automatic control, accident lighting, light and audio signals under normal operation and accident conditions, and can also be used in metallurgy, railways, mines, petrochemical, post and telecommunications, communications, medical and health, banks, hotels, high-rise buildings, computer networks and other industries. The microcomputer controlled DC power supply cabinet can be used for the DC power supply of power plants, substations and other industries that are unattended and remotely monitored.

GGJ LV reactive power compensation cabinet

GGJ low-voltage reactive power compensation cabinet is specially designed for the actual situation of the power grid. It adopts intelligent control technology, which effectively solves the problem of automatic switching reactive power compensation of parallel capacitors under harmonic conditions on the one hand, and can filter harmonics according to the actual requirements of users, clean the grid environment, reduce losses and eliminate harmonic hazards on the other hand; It also provides capacitive reactive power to the system to improve the power factor. It can be used in power distribution systems of electric power, metallurgy, petrochemical, industrial and mining enterprises, construction, machinery and other industries.

GCS Low Voltage Withdrawable Switchgear

GCS device is suitable for power distribution system in power plant, petroleum, chemical, metallurgy, textile, high-rise building and other industries. It's three phase AC 50(60)Hz low-voltage complete set of distribution device with rated operating voltage of 380V (400V), (660V), and rated current of 4000A and below, and is used for power distribution of power generation and power supply, central control of motor and reactive power compensation in place requiring connecting with computer and of high degree of automation, like large power plants, petrochemical system.

GCK Low Voltage Withdrawable Switchgear

GCK low-voltage withdrawable switchgear consists of two parts: power distribution center (PC) switchgear and motor control center (MCC). It is suitable for power users applicable to such as power plants, substations, industrial and mining enterprises for AC 50Hz, maximum working voltage up to 660V, maximum working current up to 3150A in the power distribution system, it is used for power distribution, motor control, lighting and other power distribution equipment for their power conversion and distribution control.

GGD AC Low-voltage Power Distribution Cabinet

GGD type AC low-voltage power distribution cabinet is suitable for power users such as power plants, substations, factories and mining enterprises, applicable to such as AC 50Hz, rated working voltage 380V, rated working current up to 3150A power distribution system, is used for the power conversion distribution and controlof power, lighting and power distribution equipment.

MNS Low Voltage Withdrawable Switchgear

Main application

ZGS11-12 Prefabricated Subsation (American type)

ZGS11-12 series prefabricated substations (American type)With small volume, easy installation and maintenance, low noise, low loss anti-theft, overload capacity, ful protection and other characteristics.t is suitable for new residential areas, green belts, parks, stations hotels, construction sites, airports and other places

YBD – 12 Landscape type underground box substation

YBD-12 landscape underground box substation combines an underground transformer (with prefabricated pit) and an outdoor advertising light box type HV/LV switchgear. The transformer has high-voltage fuse protection and can stay submerged in water for a period, widely used in airports, highways, bridges, and tunnels. The outdoor cabinet houses HV/LV distribution equipment, with its exterior serving as a customizable advertising light box. The product covers minimal space, blends with surroundings, and provides advertising value.

220kV and below modular intelligent prefabricated substations

Prefabricated cabinet is an outdoor intelligent substation based on the core concept of "standard distribution". The adoption of prefabricated cabinet structure has become an important measure for the construction of primary equipment carrier of intelligent substation. Compared with the acceleration of the construction of smart grid, the speed of substation construction has relatively lagged behind. In order to speed up the construction cycle of intelligent substation, State Grid Corporation of China has proposed the construction mode of standard distribution substation The solution of "standardized design, factory processing and assembly construction" realizes the rapid promotion and application of intelligent substation (prefabricated cabinet).

YB □ -12/0.4 Prefabricated Box Substation

This product fully conforms to the standard of GB17467 "High Voltage and Low Voltage Prefabricated substation". It is suitable for urban public power distribution, street lamp power distribution, industrial and mining enterprises, urban buildings, residential areas, oil fields, docks, hotels, parks and construction sites, etc. It can realize ring network or terminal power supply mode
