Product Overview
Eaton’s industrial control component portfolio features the RMQ-Titan series of 22mm pushbuttons and indicator lights, offering a comprehensive range of spring-return and self-locking pushbuttons, mushroom-head emergency stop buttons, selector switches, key-operated switches, and LED indicators with up to IP67/IP69K protection for harsh environments. Complementing this range, the FAK series provides heavy-duty foot and hand-operated switches designed for integration with pushbutton and emergency stop circuits, featuring IP67/IP69K rating, high-pressure washability, and a mechanical lifespan exceeding one million operations. Together, these product lines deliver robust, standards-compliant (IEC/EN 60947, UL, CE) solutions for machinery control, safety interlocks, and operator-interface applications across food processing, wind power, EV charging, and other demanding industrial settings.

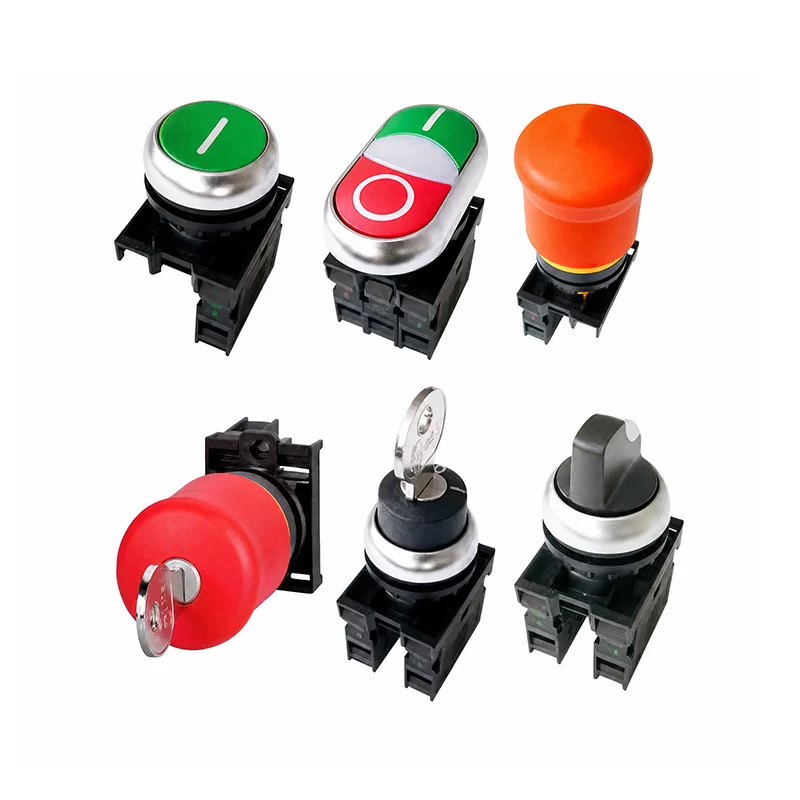

RMQ-Titan Pushbuttons and Indicator Lights
The RMQ-Titan series is Eaton’s premium 22mm pushbutton and indicator light solution, combining a distinctive titanium-finished front ring with rugged industrial performance. The comprehensive range includes spring-return and self-locking pushbuttons, mushroom-head emergency stop buttons (direct pull and key-release types), selector switches, key-operated switches, and LED indicator lights. Built with long-life LED technology (100,000-hour service life), the modular backend accepts up to six contact or LED modules, supporting flush, surface, and rear mounting configurations. With protection ratings up to IP67/IP69K, the series is engineered for harsh environments—including food processing, wind power, and EV charging infrastructure—and complies with IEC/EN 60947, UL, and CE standards.
FAK Foot/Hand Operated Switch
The FAK series is a heavy-duty foot and hand-operated switch designed for integration with pushbutton and emergency stop circuits in demanding industrial settings. Featuring IP67 and IP69K protection, the switch withstands high-pressure washing and is built for dirty or damp environments. Available in spring-return and self-locking variants with 1NO, 1NC, or 2NC contact options, the FAK delivers a mechanical lifespan exceeding one million operations and complies with IEC/EN 60947 standards, making it ideal for machinery control, safety interlocks, and operator-interface applications.
Pushbuttons and Indicator Lights RMQ-Titan
Product Information
● Emergency Stop Pushbutton M22-PV
● Pushbutton M22-D
● Selector Pushbutton M22-WRK
● Key Release Pushbutton M22-WRS
● Indicator Light M22-L
Accessories
● Foot/Hand Operated Switch FAK
● For pushbutton switches and emergency stop switches
● For use in harsh environmental conditions, such as dirty or damp environments
● Operated by hand, foot, or other body parts
● Can be washed with high-pressure cleaners up to 100 Pa
Foot- and Hand-Operated Switch FAK
Technical Specifications
| Description | Unit | Spring Return | Self-Locking |
|---|---|---|---|
| Compliance Standards | IEC/EN 60947, VDE 0660 | IEC/EN 60947, VDE 0660 | |
| Mechanical Life | Operations ×10⁶ | >1 | >0.1 |
| Operating Frequency | Operations/h | ≤3600 | ≤600 |
| Operating Force | N | 20–40 | 40–60 |
| Operating Torque | N·m | 20–40 | 40–60 |
| Protection Degree (IEC/EN 60529) | IP67, IP69K | IP67, IP69K | |
| Climate Protection | Damp heat, steady state, per IEC 60068-2-78; Damp heat, cyclic, per IEC 60068-2-30 | Damp heat, steady state, per IEC 60068-2-78; Damp heat, cyclic, per IEC 60068-2-30 | |
| Ambient Temperature | |||
| — Open Type | °C | −25/40 | −25/40 |
| Installation Position | Any | Any | |
| Mechanical Shock Resistance (per IEC 60068-2-27) Shock Duration 11 ms, Half-Sine Wave |
g | >15 | >15 |
