Product overview
JP series outdoor integrated distribution box is a multi-function integrated metering, outlet, reactive power compensation, outdoor integrated power distribution device; integrated short circuit, overload, overvoltage, leakage protection functions etc.; with small size, beautiful appearance, economical Practical, easy installation onto the poles of outdoor pole transformers, it is a new generation of ideal power distribution products for the transformation of urban and rural power grids.

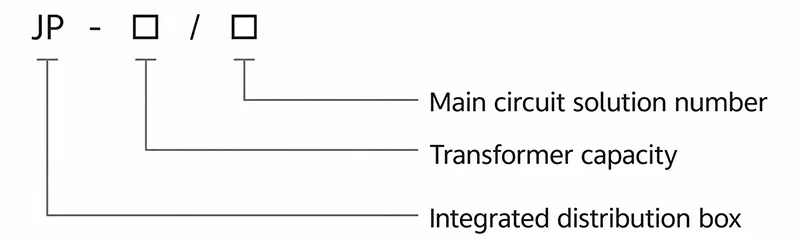

Model and meaning
Normal service condition
● Normal service condition
● Ambient temperature: -25°C -+40°C;
● Relative air temperature: the daily average value is not more than 90%, and the monthly average value is not more than 90%;
● Altitude: not more than 1000m;
● Severe vibration and impact and corrosive gas are not allowed in the place for installation.
Note: If the above conditions are exceeded, you can consult with our company.

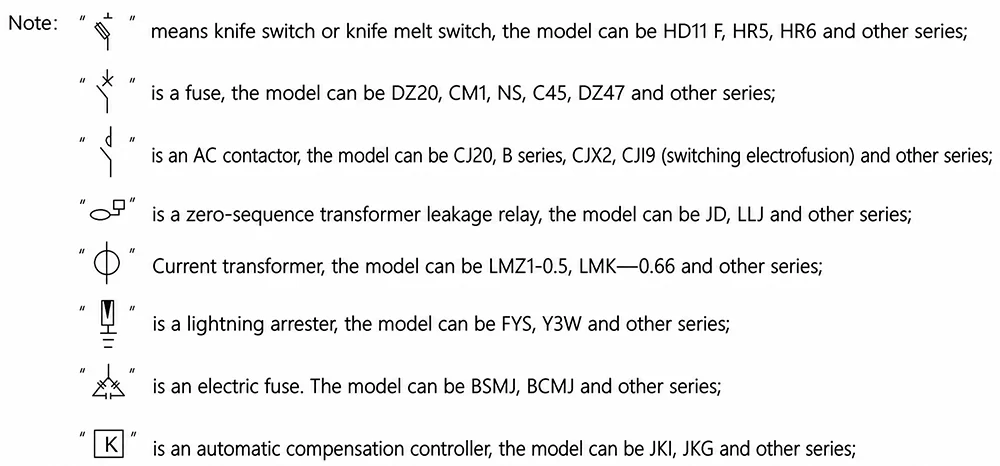

Main circuit solution diagram
The number of compensation loops is 1-4 optional, and the capacity of each loop is 3-20Kvar optional.
In addition: According to user needs, the temperature and humidity control device can be installed in the box, and the switching mode of the compensation loop can be based on the user’s requirements, such as non-contact module switching, compound switch switching, etc.
Technical parameters
| Series No. | Name | Unit | Parameter |
|---|---|---|---|
| 1 | Transformer capacity | KVA | 30-400 |
| 2 | Rated working voltage | V | AC400 |
| 3 | Auxiliary circuit working voltage | V | AC220,AC380 |
| 4 | Rated frequency | HZ | 50 |
| 5 | Rated current | A | ≤ 630 |
| 6 | Rated falling point action current | A | 30-300 adjustable |
| 7 | Degree of protection | IP44 |

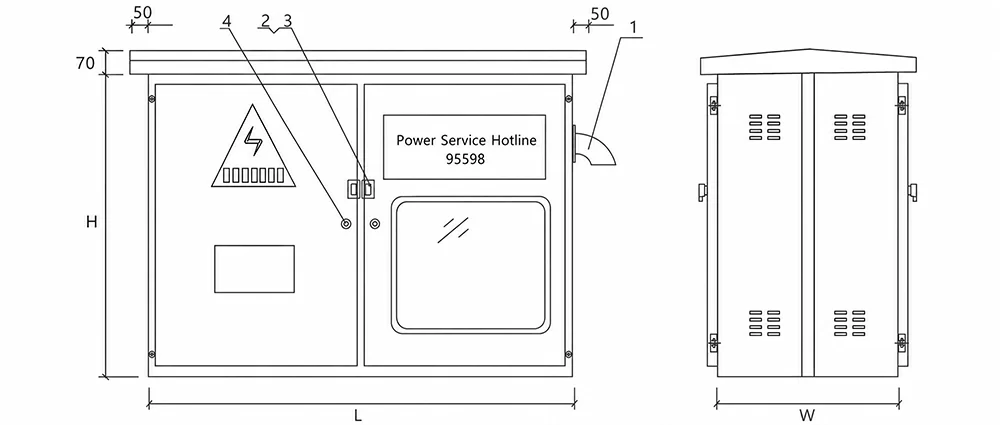

Schematic diagram of cabinet structure
Horizontal box size

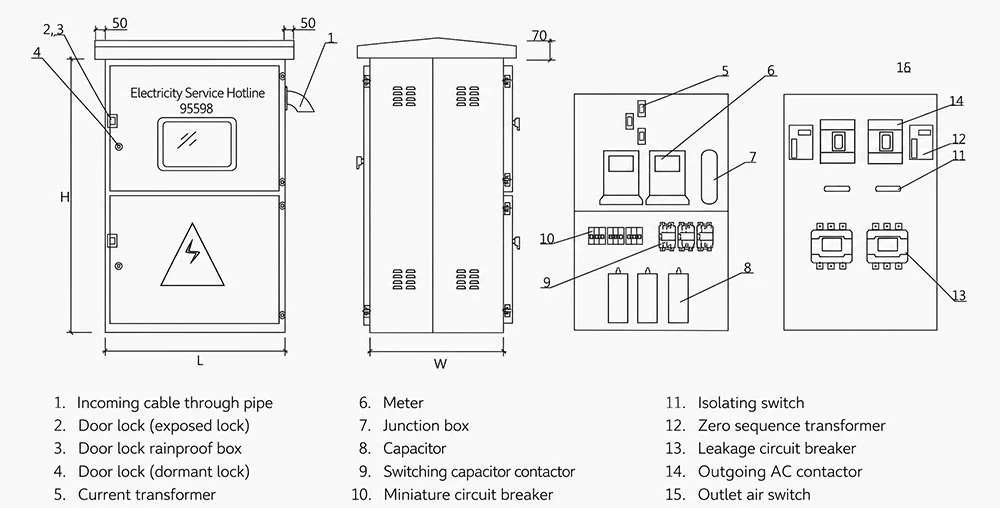

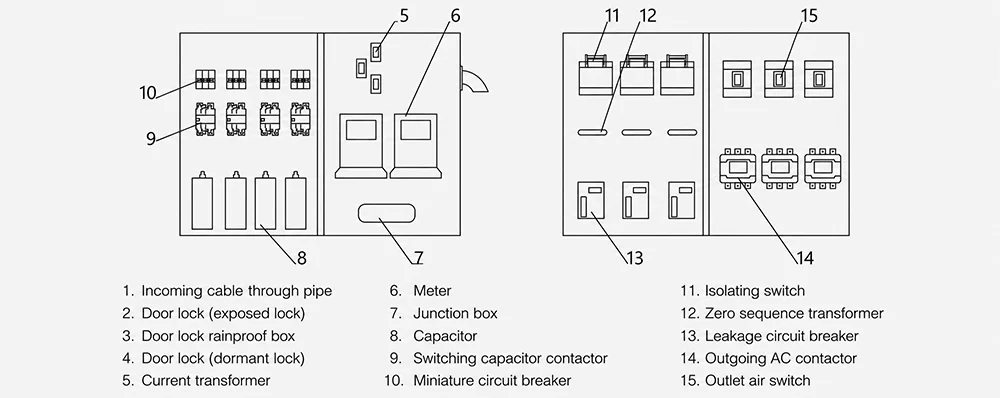

Installation diagram
Box size
Horizontal box size
| Transformer capacity | Project number | L | W | H |
|---|---|---|---|---|
| 30-100KVA | 01,06 | 800 | 450 | 700 |
| 30-250KVA | 02,04,07,09 | 900 | 500 | 700 |
| 100-400KVA | 03,05,08,10 | 1100 | 600 | 800 |
Note: The above dimensions are for reference only
Vertical cabinet size
| Transformer capacity | Project number | L | W | H |
|---|---|---|---|---|
| 30-100KVA | 01,06 | 600 | 450 | 1000 |
| 30-250KVA | 02,04, 07,09 | 700 | 500 | 1000 |
| 100-400KVA | 03,05,08,10 | 800 | 600 | 1100 |
Note: The above dimensions are for reference only
Ordering instruction
● Product model and quantity;
● Product structure type (vertical, horizontal);
● Models and technical parameters of main components;
● Other special requirements.
