Product Overview
Eaton’s Power Xpert DX is a low-voltage power distribution and motor control center designed for diverse industrial and commercial applications. Rated up to 6300A with main busbar short-circuit withstand of 100kA/1s, the system offers Form 3b/4b full internal separation, IP42/IP54 protection, and supports drawer, plug-in, and fixed configurations. Featuring patented silver-plated scissor contacts, ARMS arc flash reduction, integrated Ethernet communication, and compliance with IEC/EN 61439 and GB/T 7251 standards, the DX delivers intelligent, reliable, and flexible power management solutions.
Product Features
● Current Capacity: Main busbar rated up to 6300A; Icw = 100kA/1s; distribution busbar up to 2000A.
● Internal Separation: Form 3b/4b full internal separation of busbars, functional units, and cable compartments.
● Protection Rating: IP42/IP54 standard; IP2X between compartments; IP2X guaranteed in test position.
● Drawer Units: Standard drawer (up to 132kW motor) and half-size drawer (up to 15kW); max 28 half-size units.
● Contact Technology: Patented silver-plated scissor contacts; 1000-cycle endurance test; no welding on high fault currents.
● Arc Flash Protection: ARMS (Arcflash Reduction Maintenance System); internal arc protection up to 100kA/0.5s per IEC 61641.
● Seismic Resistance: Tested per IEC 60068-3-3; AG2 (0.25g) standard and AG5 (0.5g) enhanced design certified.
● Panel Types: XP (ACB Incomer/Feeder), XB (Bus-coupler), XG (Capacitor Bank), XS (Stack ACB), XW/XF (Feeders), mixed configurations.

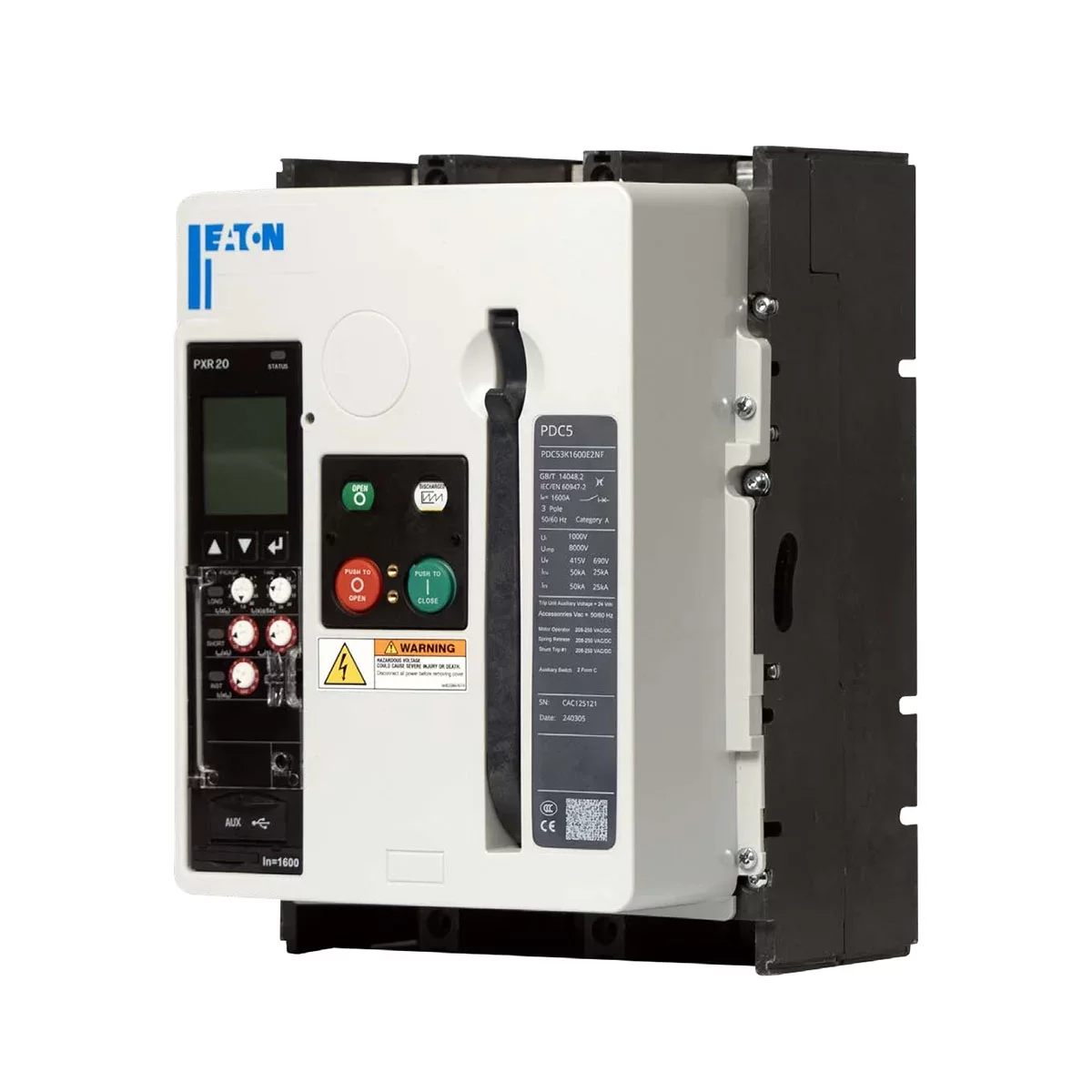

● Component Compatibility: Compatible with IZM air circuit breakers, NZM/PDC molded case breakers, DILM contactors, PKZMC protectors, VFDs.
● Smart Monitoring: ETDSS intelligent distribution automation system; IoT-based real-time monitoring, energy analysis, and fault diagnosis.
Product Advantages
● High Reliability: Type-tested per IEC 61439; ISO 9001/14001 certified manufacturing; proven Eaton components throughout.
● Enhanced Safety: ARMS reduces arc flash incident energy; internal arc zone design tested to IEC/TR 61641 criteria 1-7; protects operators and downstream equipment.
● Flexible Configuration: Multiple panel types, drawer/fixed/plug-in options, versatile cable entry, and front/rear access adapt to any installation requirement.
● Space & Energy Efficient: Modular design with up to 28 half-size drawer units; low heat dissipation; compact footprint optimizes cabinet density.
● Intelligent & Connected: Built-in Ethernet enables seamless integration with SCADA/DCS; ETDSS provides real-time monitoring, energy efficiency analysis, and predictive maintenance.
● Global Compliance: Meets IEC/EN 61439, GB/T 7251, IEC 61641, IEC 60068-3-3; suitable for worldwide deployment across diverse regulatory markets.
● Future-Proof: Modular architecture allows easy upgrades; compatible with latest Eaton components and digital management platforms.
Usage Scenarios
● Data Centers: High-performing, sustainable power distribution with uninterrupted operation and advanced monitoring.
● Renewable Energy: Solar, wind, and hybrid power integration; robust performance under variable climatic conditions.
● Utilities & Smart Grid: Engineered solutions for smart grid reliability with uninterrupted mode operation.
● Industrial Manufacturing: Full-scope power distribution and motor control for factories, processing plants, and heavy industry.
● Infrastructure Projects: Transportation hubs, airports, and public utilities requiring high reliability and arc flash safety.
● Commercial Buildings: HVAC, lighting, water circulation, and general power distribution with energy-efficient performance.
● Special Solutions: DC traction power supply, integrated power modules for data centers, MILVA low-voltage assemblies.
